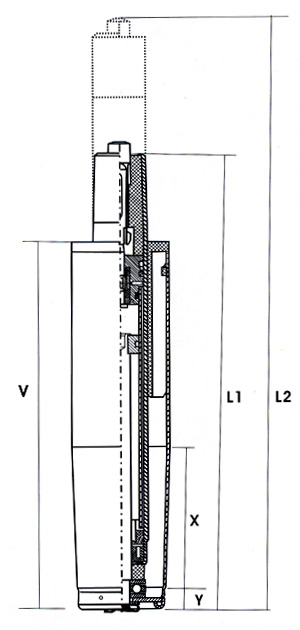

规格Item |
行程Size |
L1 |
L2 |
V |
X |
Y |
| D50 | 50mm | 200mm | 250mm | 150mm | 60mm | 10mm |
| D65 | 65mm | 215mm | 280mm | 160mm | 60mm | 10mm |
| D85 | 85mm | 235mm | 320mm | 180mm | 60mm | 10mm |
| D100 | 100mm | 250mm | 350mm | 195mm | 60mm | 10mm |
| D120 | 120mm | 270mm | 390mm | 215mm | 60mm | 10mm |
| D140 | 140mm | 290mm | 430mm | 230mm | 60mm | 10mm |
| D180 | 180mm | 330mm | 510mm | 270mm | 60mm | 10mm |
| D200 | 200mm | 350mm | 550mm | 300mm | 60mm | 10mm |
| D220 | 220mm | 370mm | 570mm | 300mm | 60mm | 10mm |
| D260 | 260mm | 440mm | 700mm | 380mm | 60mm | 10mm |
| LD260 | 260mm | 500mm | 745mm | 425mm | 60mm | 10mm |
| LD330 | 260mm | 610mm | 845mm | 530mm | 60mm | 10mm |
